Get the Facts on Metal Extrusion with ETCN's Guide

Are you curious about metal extrusion technologies and processes? Wondering what materials are commonly used? Get the answers you need with ETCN’s comprehensive guide to metal extrusion. This extensive report covers everything from design considerations and mold preparation to production techniques and machines.

  • Discover All You Need to Know with ETCN's Metal Extrusion Guide

Are you in the metals and engineering industry? Keep updated with the latest information on metal extrusion with our comprehensive guide. Our Metal Extrusion Guide covers everything from carbon steel and aluminum to different alloys, standard extrusion processes, and more.

Discover All You Need to Know with ETCN's Metal Extrusion Guide

Comprehensive List of Standard Specifications for Metal Extrusion Service

SpecificationDescription
AlloyThe type of metal used in the extrusion process.
TemperThe hardness and strength of the metal after extrusion, determined by heat treatment.
Cross-sectional shapeThe shape of the extruded metal, which can include solid, hollow, or semi-hollow profiles.
ToleranceThe acceptable deviation from the specified dimensions of the extrusion.
Surface finishThe texture and appearance of the extruded metal, which can range from smooth to textured.
LengthThe maximum length of the extrusion, which can vary depending on the capabilities of the extruder.
Wall thicknessThe thickness of the metal walls in a hollow or semi-hollow extrusion.
DiameterThe size of the circular cross-section of a hollow or semi-hollow extrusion.
StraightnessThe degree to which the extruded metal is straight, with allowable deviations specified in the tolerance.
Minimum order quantityThe minimum amount of extruded metal that can be ordered from the service provider.
Note: These specifications may vary depending on the specific metal extrusion service provider.
What is Metal Extrusion?
  • What is Metal Extrusion?

Metal extrusion is the process of shaping metal by forcing it to flow through a die-shaped opening. The metal is heated to a temperature that allows it to become more malleable, and then it is forced through the die using a hydraulic or mechanical press.

The resulting extrusion has a consistent cross-sectional shape and can be made into various profiles, including solid, semi-hollow, or hollow shapes.

Extrusion is used across various industries, including construction, automotive, aerospace, and consumer goods, to produce parts with specific shapes and dimensions that are difficult to achieve through other manufacturing methods.

Custom Metal Extrusion Parts Display

Exceeding your Expectations: Metal Extrusion Service

At ETCN, we strive to provide our customers with customized metal extrusion services that exceed their expectations. Our experienced professionals are committed to delivering high-quality work at unbeatable prices. So why wait? Get your metal extruded today at ETCN!

2023 Professional Guide

What is metal extrusion, and how does it work?

Metal extrusion is a metalworking process that involves shaping metal by forcing it to flow through a die-shaped opening. The process is used to create a variety of parts, ranging from simple rods and tubes to complex geometric shapes. Metal extrusion is performed by heating the metal to a temperature that makes it more malleable before forcing it through the die using a hydraulic or mechanical press. The result is an extruded metal part with a consistent cross-sectional shape suitable for various applications across different industries.

Definition and process of metal extrusion

Metal extrusion shapes a metal workpiece by forcing it to flow through a die-shaped opening. The process is performed by heating the metal, usually to around 50% of its melting point, to make it more malleable. The metal is then placed in a cylinder, also known as a container, that applies pressure to force the metal through the die. The choice of metal and temperature can vary depending on the desired extrusion outcome.

The metal can also be lubricated with a suitable lubricant to aid the process. The oil helps to facilitate a smoother flow of the metal through the die, reducing friction and wear. The metal is then forced through the die using a hydraulic or mechanical press, resulting in an extruded metal part with a consistent cross-sectional shape. The extrusion can then be cut, machined, or formed into the desired shape.

Types of metal extrusion

Direct and Indirect Extrusion

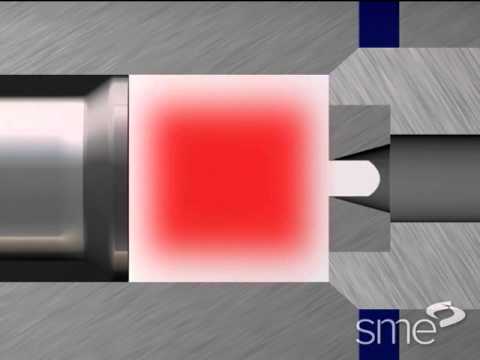

There are two main types of metal extrusion: direct and indirect extrusion. Direct extrusion involves pushing the metal through the die opening in one continuous motion. In contrast, indirect extrusion consists in moving the die towards the metal, which is stationary, forcing it to flow through the die.

Hot and Cold Extrusion

Metal extrusion can also be classified according to the metal’s temperature. Hot extrusion occurs when the metal is heated to a high temperature close to its melting point. The metal is then forced through the die opening. Hot extrusion is used for metals that are difficult to deform in their solid state.

On the other hand, cold extrusion is performed at room temperature or slightly above it. The metal is placed under high pressure to force it through the die, producing a finished extruded product without generated heat.

Warm Extrusion

Warm extrusion is a relatively new technique that involves extruding metals that have been heated to a temperature lower than that used in hot extrusion but higher than that used in cold extrusion. This technique produces metal parts that require high dimensional accuracy, improved surface finish, and better material properties. Warm extrusion is also used for metals that are difficult to deform in their unconscious state.

In conclusion, the metal extrusion process enables the creation of parts with specific shapes and dimensions that would be difficult to achieve with other manufacturing methods. Different types of extrusion are used depending on factors such as metal properties, desired dimensional accuracy, and surface finish. The ability to produce accurate and complex components makes metal extrusion a popular and versatile manufacturing process across various industries.

Advantages and disadvantages of metal extrusion:

Advantages of metal extrusion:

Metal extrusion is a highly efficient and cost-effective manufacturing process with several advantages. One of the most significant advantages of metal extrusion is its ability to produce complex shapes with high accuracy and consistency. Since metal extrusion shapes metal by forcing it to flow through a die-shaped opening, manufacturers can easily create even the most complex shapes.

Furthermore, metal extrusion can produce parts with various characteristics, including solid, semi-hollow, or hollow profiles. This versatility makes metal extrusion a popular choice across multiple industries, including construction, automotive, aerospace, and consumer goods, where parts with specific shapes and dimensions are required.

Another significant advantage of metal extrusion is its ability to reduce material waste. Since the extrusion process reshapes rather than cuts the metal, there is minimal material waste. Additionally, metal extrusion can be scaled up or down according to the production needs, ensuring that manufacturers can efficiently meet the demands of their customers.

Disadvantages of metal extrusion:

While metal extrusion has many benefits, it is not devoid of drawbacks. One of the primary disadvantages of metal extrusion is the high cost of equipment and tooling. Metal extrusion requires specialized machinery and dies that need to be frequently replaced or repaired, making the overall cost of production higher than other manufacturing methods.

Furthermore, the extrusion process generates a lot of heat, which can cause deformation and surface defects in the final product. Manufacturers often use various cooling methods to combat this issue, such as water-cooled extrusion dies or forced-air cooling systems, but these methods can also increase production costs.

Finally, the extruded products may not be suitable for applications requiring greater strength or resilience. Extruded products can have internal stresses that can lead to brittleness or failure, particularly when subjected to high force or pressure.

In conclusion, metal extrusion is a highly versatile and valuable manufacturing process offering many benefits. However, as with any manufacturing process, it has drawbacks. Understanding these advantages and disadvantages can help manufacturers make informed decisions about using metal extrusion for their specific production needs.

Types of metal extrusion processes



Impact Extrusion:

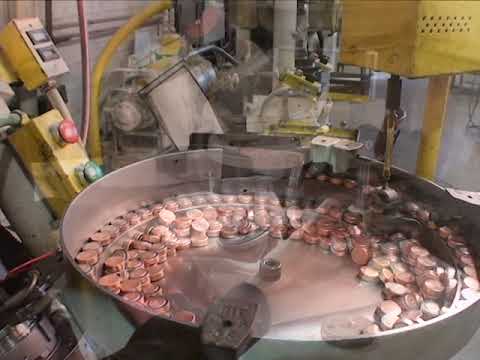

Impact extrusion, also known as cold extrusion, is a metalworking process that involves forming metal into a desired shape by striking it with a hammer or press without heating. Impact extrusion is suitable for working with malleable metals such as copper, brass, and aluminum and can produce precise and complex shapes.



Friction Extrusion:

Friction extrusion is a process that involves forcing a metal billet or tube through a die using rotational friction. The process involves a rotating pin pushing the metal through the die while generating heat due to friction. This heat softens the metal, allowing it to flow more efficiently, resulting in a product with precise dimensions and a high-quality surface finish.



Hydrostatic Extrusion:

Hydrostatic extrusion is a cold extrusion process that involves forcing a metal billet through a die using a high-pressure liquid, typically oil or water. The pressure of the fluid allows the metal to flow smoothly through the die, resulting in precise dimensions and a high surface finish. Hydrostatic extrusion is commonly used to produce parts with circular cross-sections.



Forward Extrusion:

Forward extrusion is a hot extrusion process that involves placing a heated metal billet into a chamber and forcing it through a die using a hydraulic or mechanical press. The resulting extruded product typically has a solid cross-section and a high-quality surface finish, making it suitable for various industrial applications.



Lateral Extrusion:

Lateral extrusion is a process that involves pushing a metal billet through a horizontally-oriented die using a hydraulic or mechanical press. This process commonly produces custom-shaped parts with many applications, including in the automotive and aerospace industries.

Factors Affecting Metal Extrusion

Factors Affecting Metal Extrusion

Metal extrusion is a manufacturing process that involves shaping metal into a desired form by forcing it through a die-shaped opening. While this process offers many advantages over other manufacturing methods, it is essential to consider various factors that can affect the outcome of metal extrusion.

Extrusion Force and Process

The extrusion force required to shape metal through a die depends on factors such as the geometry of the dice, the material being extruded, and the desired shape of the final product. The extrusion force must be carefully controlled to ensure the metal flows evenly and consistently without causing material defects.

The extrusion process must be carefully monitored and controlled to achieve the desired extrusion force. The metal is typically heated to a temperature that makes it more malleable. The extrusion process requires a hydraulic or mechanical press to force the metal through the die.

Material Flow and Temperature

The temperature of the metal being extruded is a critical factor in ensuring that the metal flows evenly and consistently through the die. Excessively high or low temperatures can cause material defects, such as cracks or voids, and can result in an irregular shape of the final product.

In addition to temperature, material flow must be carefully controlled to ensure that the metal moves through the die consistently. Achieving an even metal flow requires proper lubrication of the dice and a uniform heating process.

Extrusion Speed and Equipment

The speed at which the metal is extruded through the die affects the quality of the final product. Extruding the metal too quickly can result in material defects while extruding too slowly can cause the metal to become too brittle or difficult to shape.

The equipment to extrude the metal must be carefully calibrated to achieve the desired speed. Modern extrusion presses have advanced control systems allowing operators to control the metal’s speed precisely.

Die Design and Characteristics

The die design used in metal extrusion plays a critical role in determining the final shape of the extruded metal. The die must be designed to achieve the desired shape while maintaining consistent material flow.

The characteristics of the die, such as its surface finish and internal geometry, also affect the quality of the final product. A die with a rough surface finish can cause material defects, while a die with overly complex internal geometry can impede material flow.

Material Properties and Grain Structure

The properties of the metal being extruded, such as its composition and grain structure, also affect the quality of the final product. Metal with a uniform grain structure is easier to shape and has better mechanical properties than metal with a non-uniform grain structure.

Controlling the grain structure of the metal requires careful temperature control during extrusion. Modern extrusion presses have advanced heating and cooling systems that allow operators to achieve the desired grain structure.

Conclusion

In conclusion, metal extrusion is a vital manufacturing process that offers many advantages over other manufacturing methods. Achieving the desired shape and quality of the final product requires careful consideration of various factors that affect the extrusion process. By carefully controlling factors such as extrusion force, material flow, temperature, extrusion speed, and equipment, die design and characteristics, and material properties and grain structure, manufacturers can produce high-quality extruded metal products that meet the needs of a wide range of industries.

Metal Extrusion Equipment and Tools

Metal Extrusion Equipment and Tools

Metal extrusion is an essential manufacturing process that involves pressing and shaping metal into a particular form using specialized tools and equipment. Several metal extrusion tools and equipment are necessary to carry out the metal extrusion process effectively.

Extrusion Presses and Machines:

Extrusion presses and machines form the backbone of the metal extrusion process. These machines apply hydraulic or mechanical pressure to the heated metal and force it through a die. Depending on the application, different extrusion presses and devices, such as hot and cold extrusion, direct and indirect extrusion, and more, can be used.

Extrusion Dies and Dummy Blocks:

The dies used in metal extrusion are specialized tools that impart the desired shape to the extruded metal. The dies can be manufactured from various materials, such as steel, carbide, and other alloys that can withstand high temperatures and pressure. In addition, dummy blocks are also used to prevent contaminants from entering the extrusion process.

Impact and Hydraulic Presses:

Impact and hydraulic presses are commonly used in the metal extrusion industry. These presses apply tremendous force on the metal and are designed to provide the necessary pressure for the extrusion process. The impact presses are pneumatic-driven, while the hydraulic presses use hydraulic fluid to generate force.

Surface Finish and Machining:

The surface finish of the extruded metal is an essential aspect of metal extrusion. Different surface finishes can be achieved by polishing, grinding, and other mechanical or chemical processes. Machining also creates specific features, such as threading and grooves, in the extruded metal.

Force and Shear in Metal Extrusion:

Force and shear are vital components of the metal extrusion process. The force applied to the metal must be sufficient to overcome the resistance offered by the die. The shear forces generated during the process affect the material flow characteristics, resulting in a particular cross-sectional shape of the extruded metal. The control of force and shear is necessary to ensure the manufacture of metal extrusions with the desired dimensional accuracy and surface finish.

In conclusion, metal extrusion equipment and tools, such as extrusion presses and machines, extrusion dies, dummy blocks, impact and hydraulic presses, surface finish and machining, force, and shear, play a significant role in the metal extrusion process. Understanding the complexities of the metal extrusion process and the part of each component is essential to delivering high-quality extruded metal products for different industries.

Applications and Usage of Metal Extrusion

Metal extrusion is a manufacturing process that produces metal parts with specific shapes and dimensions. This process can be used in various industries, including construction, automotive, aerospace, and consumer goods. Extrusion is particularly useful for creating parts with consistent cross-sectional shapes and profiles, including solid, semi-hollow, or hollow bodies.

Aluminum Extrusion and Profile Manufacturing

Aluminum is one of the most commonly extruded metals due to its desirable physical properties, lightweight and corrosion-resistant. Aluminum extrusions are created by heating the metal to a temperature that allows it to become more malleable and forcing it through a die-shaped opening using a hydraulic or mechanical press. These aluminum extrusions can create various profiles, including structural members, frames, and trim pieces.

Steel and Magnesium Extrusion for Metal Parts

While aluminum is commonly used for extrusion, other metals, such as steel and magnesium, can also be used. Steel extrusions are typically used for parts that require high strength and are commonly used in the automotive industry for creating suspension and steering components. On the other hand, magnesium extrusions are used for making lightweight parts in the aerospace industry.

Manufacturing and Industrial Applications

Metal extrusion is a widely used manufacturing process in various industries due to its ability to produce complex parts with consistent cross-sectional shapes and profiles. In the construction industry, extruded metal parts can create window frames, door frames, and curtain walls. In the automotive sector, extruded metal parts can create structural components, suspension components, and body panels. In the aerospace industry, extruded metal parts can make lightweight structural members and other intricate details.

History and Pioneers in Metal Extrusion

The history of metal extrusion dates back to the 18th century, when the process was first used to produce lead pipes. However, it wasn’t until the 20th century that metal extrusion became widely used in industrial applications. Alexander Dick and Thomas Burr, who received a US patent for a hydraulic press used for extruding metals in 1797, were two pioneers in metal extrusion.

Current Trends and Developments in Metal Extrusion

Advancements in technology have led to the development of new extrusion techniques and equipment, resulting in improved efficiency and quality in metal extrusion. One such improvement is using computer-controlled hydraulic presses, allowing greater precision and control over the extrusion process. Other recent developments include using alternative metals for extrusions, such as titanium and nickel alloys, and developing new extrusion shapes and profiles.

In conclusion, metal extrusion is a versatile manufacturing process widely used across various industries to produce complex parts with consistent cross-sectional shapes and profiles. Advancements in technology have led to new developments and trends in metal extrusion, making it a critical manufacturing process in modern industries.

Frequently Asked Question

Q: What is metal extrusion?

A: Metal extrusion is a metal forming process where a metal billet is either hot or cold pushed through the die to create the desired cross-sectional profile.

Q: What are the advantages of metal extrusion?

A: Metal extrusion produces complex cross-section profiles at a high production rate. It is a cost-effective metal-forming process and allows for the creation of lightweight and structurally strong extruded parts. Additionally, metal extrusion profiles have excellent mechanical properties due to the compression and shear forces during the process.

Q: What are the disadvantages of metal extrusion?

A: One of the main drawbacks of metal extrusion is that it requires specialized equipment and tooling. The process can also result in extrusion defects such as surface cracking and warping, especially when the material is extruded in opposite directions.

Q: What is the extrusion process?

A: The extrusion process is a metal-forming process where a material is forced to flow through a die to create a specific shape or profile. The material is either hot or cold and is pushed through the die, which imparts its body onto the fabric.

Q: What are the different types of extrusion?

A: There are two primary types of extrusion: direct and indirect. In direct extrusion, the ram pushes the material through the die, and in indirect extrusion, the die moves toward the ram while the material remains stationary.

Q: What is aluminum extrusion?

A: Aluminum extrusion is a subset of metal extrusion, where extrusion equipment is used to create aluminum extrusion profiles. The process is similar to metal extrusion, but the characteristics of the aluminum material affect the extrusion method and tooling used.

Q: What is the extrusion ratio?

A: The extrusion ratio is the ratio of the starting billet’s cross-sectional area to the material’s cross-sectional area as it exits the die. The extrusion ratio affects the material flow through the die and the final properties of the extruded part.

Q: Who invented the extrusion process?

A: Joseph Bramah first developed the extrusion process in the late 18th century.

Q: What is the difference between hot and cold extrusion?

A: Hot extrusion is performed above the material’s recrystallization temperature, while cold extrusion is performed below the recrystallization temperature. Hot extrusion requires more force, allowing for increased flexibility and faster production rates, while cold extrusion provides greater precision and surface finish.

Q: What is an extrusion profile?

A: An extrusion profile is the cross-sectional shape of the material as it exits the die during the extrusion process. Extrusion profiles can be simple or complex and include features such as holes, grooves, or flanges.
